活性染料ENF系列是以國際先進的超小分子化學理論為基礎,應用于染料的研發和制造是活性染料發展中一次重大創新,實現了新一代傻瓜型活性染料的誕生。該系列染料分子結構相近,染料配伍性極佳,三原色染色同步性達到單色一樣的穩定。從實驗室到大生產放樣一次成功率高,染色工藝寬容性大,無論染色中任何工藝參數變化,染色色差和缸差極少,大幅降低了返修率,提高生產效率同時降低了染色綜合成本。
The reactive dye ENF series is based on the international advanced Supra- molecular chemistry theory,the application of this theory on the research and development and manufacture of dyes is a major innovation in the development of reactive dyes,it realized the birth of a new generation of fool-type reactive dyes.The series of dyes have similar molecular structures and excellent dye compatibility,synchronization of three original colors achieves the same stability as monochrome dyes.It has a high success rate from laboratory to mass production,and with stable dyeing process,regardless of any process parameter changes during dyeing, the color difference and cylinder difference are extremely small, which greatly reduces the repair rate and the overall cost of dyeing, improves production efficiency.
Synchronization of Jinguangfix ENF Primary Colors
勁光菲克斯 Jinguangfix |
色牢度 Fastness |
||||||||||||
|
溶解度Solubility |
g/L ,(50℃) |
耐光 Xenon Light
|
皂洗 Soaping |
耐摩擦 Rubbing |
耐汗?jié)n Perspiration |
|||||||
產品名稱 Product name |
色樣 sample |
|
|
|
原樣變色CH |
棉布沾色CO |
干 Dry |
濕 Wet |
堿 Alkali |
酸 Acid |
|||
|
0.5% |
1.5% |
|
|
|
|
|
|
|
原樣變色 CH |
棉布沾色 CO |
原樣變色 CH |
棉布沾色 CO |
Yellow 黃ENF |
150 |
5 |
4-5 |
4 |
4-5 |
4 |
4-5 |
4-5 |
4-5 |
4-5 |
|||
Brill Red 艷紅ENF |
150 |
3 |
4 |
4 |
4 |
3-4 |
4 |
3-4 |
4 |
3-4 |
|||
Red 紅ENF |
|
150 |
3 |
4 |
4 |
4 |
3-4 |
4 |
3-4 |
4 |
3-4 |
||
Navy 藏青ENF |
150 |
3-4 |
4-5 |
3 |
4 |
3 |
4 |
4 |
4 |
4 |

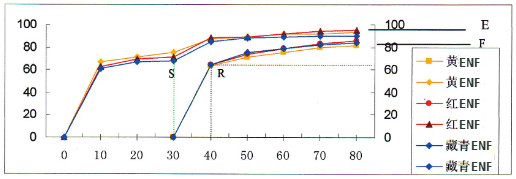

ENF三原色上染率和固色率曲線
Dye uptake and fixation curves of ENF tricolor
提升率同步性
Lift rate synchronization
比例 proportion 深度depth |
0.5% |
1.0% |
2.0% |
4.0% |
|
A |
黃ENF 30% 紅ENF 30% 藏青ENF 40% |
||||
B |
黃3RF 30% 紅3BF 25% 深藍2GF 45% |
|
|
配伍性測試
Compatibility test
試驗工藝條件:染色深度1%;浴比:1:6 元明粉:40g/l ;純堿:15g/l
Test process conditions:Dyeing depth 1%;Bath ratio: 1:6;Sodium sulfate: 40g/l;Sodium carbonate:15g/l
40°CX5' | 40°CX10' | 40°CX15' | 40°CX30' | 50°CX5' | |
A | |||||
B | |||||
60°CX5' | 60°CX15' | 60°CX30' | 60°CX45' | 60°CX60' | |
A | |||||
B |
以上測試在染色溫度、時間以及鹽、堿添加進行分段取樣,A組染料⊿E≤0.30明顯優于B組常規染料,體現了試驗工藝條件變化的穩定性。
The above tests are carried out by sampling at the dyeing temperature, time and salt and alkali addition,the⊿E of Group A dyes is≤0.30,Significantly superior to conventional dyes of group B, reflecting the stability of the test process conditions.
堿劑及電解質用量表:
Alkali agent and electrolyte dosage table
染料濃度(%o.w.f) Dye depth(%o.w.f) 染色助劑 dyeing auxiliary |
全棉 Cotton |
人棉/莫代爾 Rayon/Mo dai er |
||
|
元明粉/鹽 Sodium sulfate/salt |
純堿 Sodium carbonate
|
元明粉/鹽 Sodium sulfate/salt |
純堿 Sodium carbonate |
<0.5 |
10-20 |
5-8 |
8-15 |
3-5 |
0.5-10 |
20-30 |
8-12 |
15-25 |
5-8 |
1.0-3.0 |
30-45 |
12-15 |
25-35 |
8-10 |
3.0-5.0 |
45-60 |
15-20 |
35-50 |
10-15 |

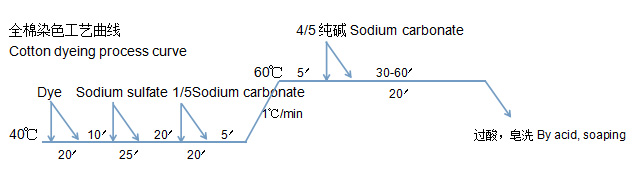

全棉染色工藝曲線
Cotton dyeing process curve
人棉及莫代爾(常規色) 工藝曲線
Rayon/Mo dai er dyeing process curve
注:視設備不同,工藝需參照調整,本工藝適用于溢流、汽液、汽流設備染色。
Note: According to the difference of the equipment and the adjustment of the process. This process is suitable for dyeing of overflow, vapor liquid, and vapor flow equipment.
